Motorized 10Ton Rail Transfer Cart for Heavy Duty Material Transport in Industrial Environments

Name: Motorized 10Ton Rail Transfer Cart for Heavy Duty Material Transport in Industrial Environments
Brand: BETTER
Price: 3000 USD

Cheap Motorized 10Ton Rail Transfer Cart for Heavy Duty Material Transport in Industrial Environments for sale

Brand Name : BETTER

Model Number : BDG

Place of Origin : Xinxiang

MOQ : 1 Piece

Price : US$3000-3500

Payment Terms : L/C,T/T

Supply Ability : 50 Sets/Month

Delivery Time : 15-30 days

Packaging Details : Single Package: Dimensions 300×200×100 cm; Gross Weight 1000 kg; Quantity per Package 1 unit.

Model NO. : BDG

Product Name : Heavy Load Transport Cart

Usage : Heavy Duty Material Transportation

Application : Steel Industry, Factory, Warehouse, Port

Material : Steel

Load Capacity : 1-1500 Tons

Control Mode : Pendant/Remote/PLC Control

Control Way : Hand Pendant/Remote Controller

Customized Function : Anti-Explosion, Heat-Resistant, Lifting, Dumpling

Transport Package : Other

Trademark : BETTER

Origin : China

HS Code : 84289090

Production Capacity : 5000/Years

Contact Now

Motorized 10Ton Rail Transfer Cart for Heavy Duty Material Transport in Industrial Environments

1. Introduction

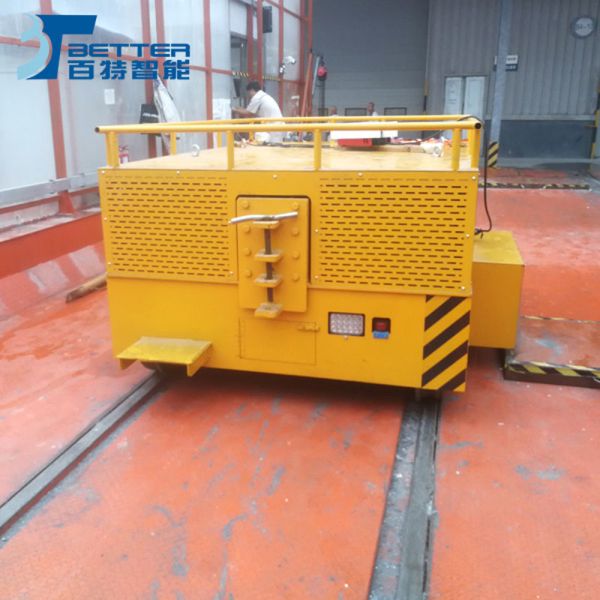

The Motorized 10-Ton Rail Transfer Cart is a robust and efficient electric vehicle designed for heavy-duty material transport in demanding industrial environments. It operates on fixed rail systems to reliably move substantial loads—such as raw materials, machinery parts, or finished goods—between workshops, assembly lines, and storage areas. Powered by an electric drive system, it ensures clean, quiet, and low-maintenance operation. This cart enhances logistical workflow by providing stable and continuous transport, minimizing manual handling, improving safety, and supporting productivity in settings like manufacturing plants, warehouses, and heavy equipment facilities.

Motorized 10Ton Rail Transfer Cart for Heavy Duty Material Transport in Industrial Environments

2. Customized

3. Application

Uses of Material Transfer Cart:
For horizontal load transfers of a wide range of material, we have the heavy duty, high quality Transfer Cart solution you need. Transfer carts are used: to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. They can even be used as a stable yet moveable machine base. With four different styles and standard capacities up to 60 tons, we have the solution you need and each style can be designed for your specific application.

4. Applicable sites of pipe rail conveying system

5. Parameter

Model		BDG-2t	BDG-5t	BDG-10t	BDG-16t	BDG-20t	BDG-25t	BDG-30t	BDG-40t	BDG-50t	BDG-63t	BDG-80t	BDG-100t	BDG-150t
Rated Load(t)		2	5	10	16	20	25	30	40	50	63	80	100	150
Table Size (mm)	Length(L)	2000	3500	3600	4000	4000	4500	4500	5000	5500	5600	6000	6500	10000
	Width(W)	1500	2000	2000	2000	2200	2200	2200	2500	2500	2500	2600	2800	3000
	Height(H)	450	450	500	550	550	600	600	650	650	700	800	900	1200
Wheel Base(mm)		1200	2500	2600	2800	2800	3200	3200	3800	4200	4300	4700	4900	7000
Rail Inner Gauge(mm)		1200	1435	1435	1435	1435	1435	1435	1435	1435	1435	1800	2000	2000
Wheel Diameter (mm)		270	270	300	350	350	400	400	500	500	600	600	600	600
Wheel Quantity		4	4	4	4	4	4	4	4	4	4	4	4	8
Ground Clearance(mm)		50	50	50	50	50	50	50	50	50	75	75	75	75
Running Speed (m/min)		0-25	0-25	0-25	0-20	0-20	0-20	0-20	0-20	0-20	0-20	0-20	0-20	0-18
Motor Power(kw)		0.8	0.8	1.5	2.2	2.5	3	4	5.5	5.5	7.5	7.5	11	15
Transformer Power(KVA)		3	3	5	6.8	6.8	6.8	10	10	10	20	20	30	30
Transformer Quantity		1	1	1	1	1	1	1	1	1	1	1	1	1
Running Distance(m)		70	70	70	70	70	70	70	60	50	50	50	50	50
Max Wheel Load(KN)		14.4	25.8	42.6	64.5	77.7	94.5	110.4	142.8	174	221.4	278.4	343.8	265.2
Recommended Rail Model		P15	P18	P18	P24	P24	P38	P38	P43	P43	P50	P50	QU100	QU100

6. Power supply mode

The motorized material handling equipment manufactured by Henan better Handling Company can be designed with different power supply mode, which include storage battery, cable, conductive rails, and so on. According to customers' different application environment, we would recommend the best suitable transfer solution with different power supply mode:
Storage Battery Powered Transfer carts: This kind motorized transfer carts powered by battery is suitable for long running distance, low using frequency, "S" "L" and curved tracks, anti-explosion and ferry occasion.
Cable reel powered transfer cart on rails: This kind electric flat transfer carts powered by cable is most used in occasion with high using frequency, short running distance, straight direction route.
Conductive track powered motorized transport trolleys: This kind material automated transport trolleys get power from the conductive tracks installed on the floor. These transport trolleys are suitable for high using frequency and large loading capacity. It has strict requirements about the track installation which need to be insulated.
Steerable transfer carts: These steerable transfer carts apply to multidirectional heavy duty transportation on cement floor and steel plate with rotation required. They can turn freely in 360°degree to change the moving direction. So they are powered by battery which won't be affected by the trailing cable during running in small or limited space.

7. Our Factory and Customers' visit

Motorized 10Ton Rail Transfer Cart for Heavy Duty Material Transport in Industrial Environments

8. Q&A

How can Transfer Carts be customized?
Please tell us:
What load or product will be transferred onto the cart?
What is the weight of the heaviest lift or load?
What are the dimensions? (Length; Width ; Height)
What is the trip time and frequency? (# of Trips per , Shifts per day:)
What is the travel area you need to cover? (Rail/cement floor, Indoor/Outdoor, straight line travel, etc)
What is the distance to travel?
Other relevant information or using condition.

If you have any question please feel free to contact us .
